Linked List

1Learning Outcomes¶

• Build the linked list, a recursive data structure, in dynamic memory.

• Write code that uses structs and typedefs.

• Practice allocating memory on the heap with malloc

• Write code that uses a function with a double pointer.

Let’s look at an example of using structures, pointers, and dynamic memory (the heap) to implement a linked list of strings.

The code discussed in this course note differs slightly from the video below:

• Naming convention has been updated to be more C-like (e.g., snake_case; typedefs as suffixed with _t)

• Course note code presents a realistic linked list scenario, where a head pointer is declared in main and then updated via the add_to_front function (hence, the double pointer parameter)

2The node_t struct¶

A linked list is a data structure that can be described recursively, as defined below:

1
2
3
4
5
typedef struct _node node_t;
struct _node {
    char *data;
    node_t *next;
};

Each node_t is has two fields: data, which has a pointer (e.g., the node “stores” a string), and next, which is a pointer to another node_t. The recursive structure means that a node’snext pointer points to another node_t, which then points to the next node_t, and so on, until the last node’s next member is NULL, signifying the end of the list.

To make our code cleaner, we use typedef. Line 1 declares node_t as an alias of struct _node, which has been forwardly declared but not defined. Lines 2 onwards then define the fields of the struct _node.^[1]

3Linked List Code: add_to_front¶

Let’s look at code that adding a string to an existing linked list.

In the code below, head is defined as a pointer to the first node in a linked list. The list starts empty, i.e., head points to nothing (NULL). Then, Line 4 calls add_to_front. Once we return from this call, we expect that head should now point to a node that has a copy of the string passed in.^[2]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
# include <string.h>
int main() {
  node_t *head = NULL;
  add_to_front(&head, "abc");
  …  // free nodes, strings here…
}

void add_to_front(node_t **head_ptr, char *data) {
  node_t *node = (node_t *) malloc(sizeof(node_t));
  node->data = (char *) malloc(strlen(data) + 1); // extra byte
  strcpy(node->data, data);  // strcpy also copies null terminator
  node->next = *head_ptr;
  *head_ptr = node;
}

Consider the add_to_front function above. The function takes in two pointers: one to a linked list (a double pointer node_t head_ptr) and a string, char * data. Recall that pointers are lightweight ways to pass data into a function, even if the linked list or the string itself is quite large.

But why a double pointer? We will discuss this once we trace through the code, line by line.

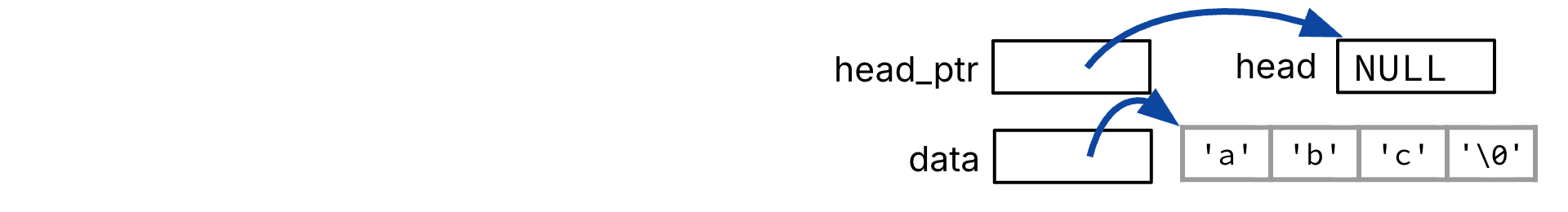

3.1Line 4: main¶

The first argument passed in is an address (&head); in other words, head_ptr is a pointer to head. The second argument passed in is a string constant (i.e., a read-only array). While C is pass-by-value, array arguments decay to pointers to the first element, so data is a pointer to the first character in the string constant.

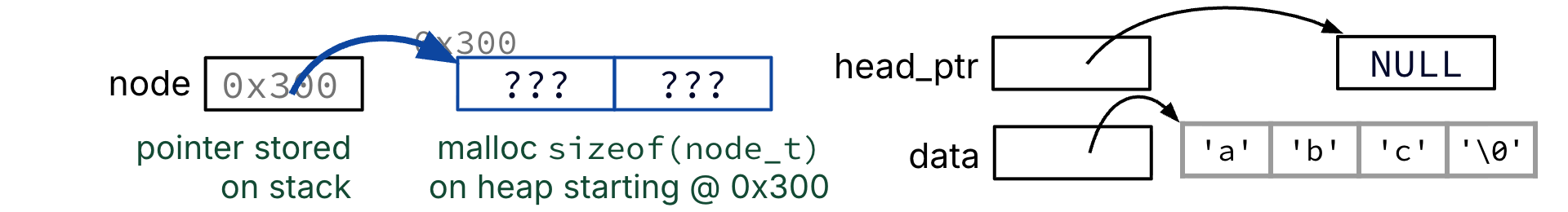

3.2Line 9: Allocate heap space for new node¶

This malloc call makes a new node_t struct in dynamic memory (i.e., the heap). In the toy diagram, node points to a newly allocated node_t at heap address 0x300. At this point, the contents of that node—both the value and the next fields—are just garbage because C does not initialize them for you.

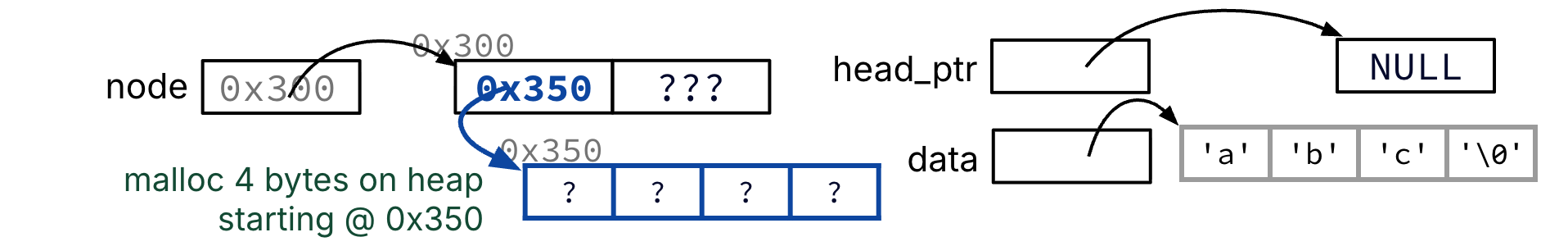

3.3Line 10: Allocate heap space for new node’s string¶

Right-hand side: This malloc call makes a new character array in dynamic memory. Before we copy the string, we make room for it^[2] on the heap.

Strings are defined as null-terminated character arrays; therefore malloc-ing space for strings always involves strlen(string) + 1. We use strlen(string) to find out how long the string is, but recall that strlen does not include the null terminator. If the string is "abc", strlen says three, but you really need four to include the '\0'.

Left-hand side: The pointer returned by malloc is then set as the value field of node using the arrow notation (node->value), which is the pointer-based way to follow the node to its data field.

3.4Line 11: strcpy string data¶

Once we have that uninitialized space reserved, we call strcpy (string copy) to bring the value over. This copies the characters 'a', 'b', 'c', and a null terminator into our newly allocated space.^[3]

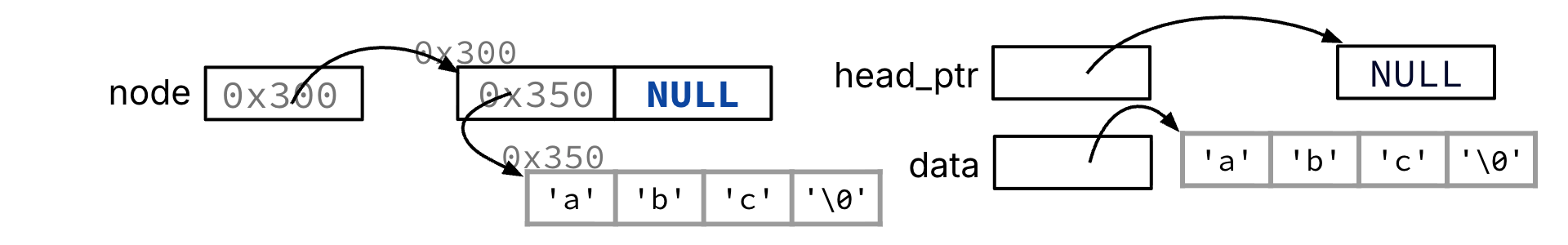

3.5Line 12: Update new node’s next pointer¶

Next, we set the next field of node. This is a great example of sharing; the new node’s next pointer now points to the original head of the list. Note that we dereference with *head_ptr because is a double pointer to a node. In this case, the head_ptr points to NULL, so dereferencing head_ptr gives us the address NULL, which we copy into the struct.

3.6Line 13: Update head of linked list¶

Finally, we must update the head of the list, which is defined as a pointer to the first node in the linked list. The “head” is currently NULL but should be updated to 0x300, which is the address of the struct we just created, which by definition is what node points to. It is therefore is sufficient to set *head_ptr (the value that head_ptr points to) to node (0x300).

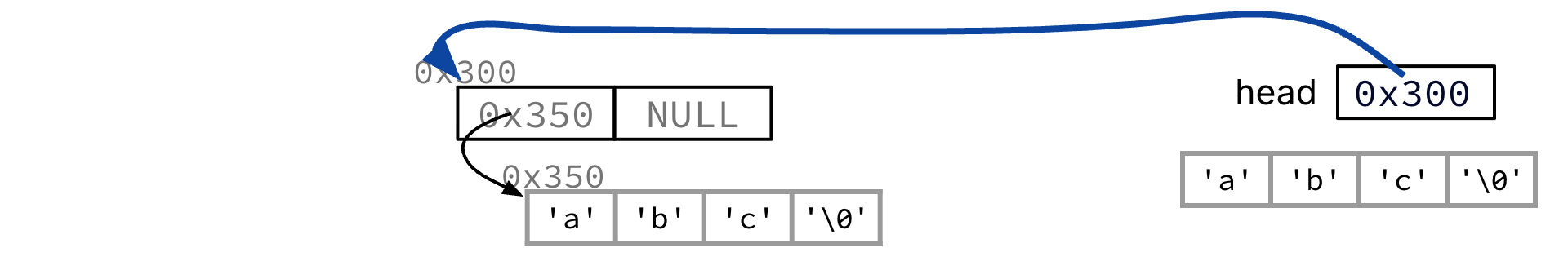

3.7Line 4 Return to main after function call¶

Recall that variables declared in a function are reclaimed by the stack once the function exits. The heap-allocated node_t struct and string persist, but the local pointer node disappears. However, we can still keep track of the node we created because the double pointer allowed us to directly update the value of our head variable.

4Conclusion¶

This example shows how to fluently work with structs and pointers in C. We will keep showing you more examples so you get more comfortable with how memory management works. Good luck, and see you in the next sectoin!
